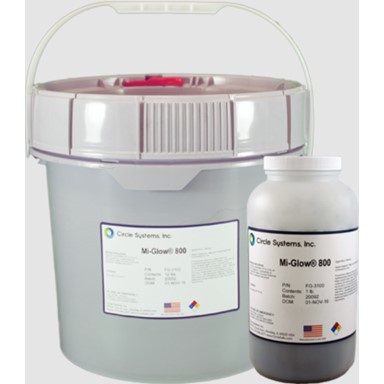

Mi-Glow® 800 is fluorescent yellow-green particles designed to be used with CircleSol M™, a refined petroleum distillate or Circle System’s wetting agents for use in water. The Mi-Glow 800 particles are manufactured with optimal sensitivity, brightness, and magnetic characteristics for wet method magnetic particle inspection. Mi Glow 800 fluoresces a brilliant shade of yellow-green when viewed under UV-A lighting. When used with CircleSol M or a Circle System’s wetting agent, Mi Glow 800 will provide an exceptional inspection by leaving minimal background and zero particle clumping on the inspection surface. Mi Glow 800 is designed to detect discontinuities, such as laps, seams, shrinkage, tears, and inclusions.
Physical Characteristics:
Green powder with a slight detergent odor.
Average Particle Size: 5 µm
AMS Standard: 3044
SAE Sensitivity: 8
Temperature Range: 32-120°F (0-49°C)
Particle Certification
Particles meet all relevant industry specifications, including but not limited to ASTM E 1444, AMS 3044, MIL-STD-271, NAVSEA 250-1500-1, NTR-1E. Certification is included with each shipment.
