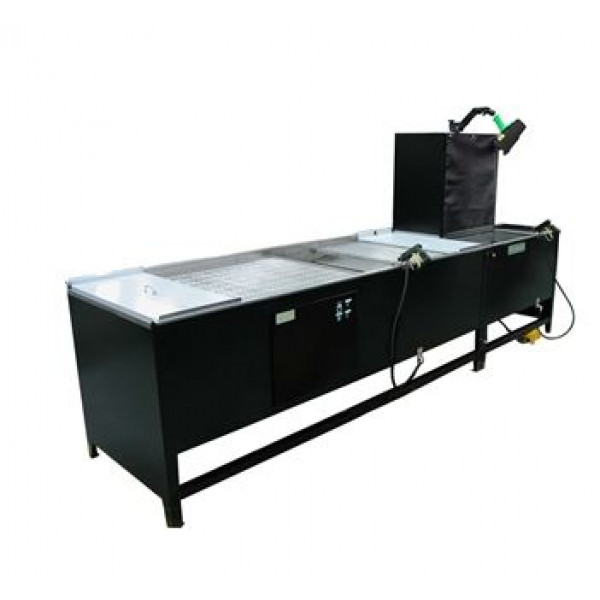

Zyglo® ZA-1633 Post Emulsified Hydrophilic Penetrant Inspection System is a stand alone 9-station inspection system designed for batch and low volume fluorescent penetrant inspection of small to medium size parts: Aerospace Fasteners, Automotive Parts, Surgical Implants, etc.
The ZA-1633 system comes with a standalone inspection booth with black light, white light and ventilating fan and a digitally calibratable dryer control.
Dimensions: 182″L x 34″W x 36″H (462.3cm x 86.4cm x 91.4cm)
Core Benefits:
Stand Alone Inspection Booth
304 Stainless Steel Tanks (16 gauge)
Durable Welded Steel Frame
• Adaptable To Multiple Applications.
• 3 Year Magnaflux Warranty
• Globally Authorized Service Centers
Elec. Requirements: 230V or 460V, 60Hz, Single Phase
Tank Size: 15.8″L x 33″W x 14.8″H (40.1cm x 83.8cm x 37.6cm)
Tank Capacity: 27 Gallon
Dryer: Digitally Calibrated Temperature Control
Black Light: Zyglo® ZB-100F Handheld, Fan-Cooled, 100 Watt
Stations:
• Penetrant
• Drain #1
• Pre-Rinse
• Drain #2
• Remover
• Final Rinse
• Dryer
• Developer
• Inspection
