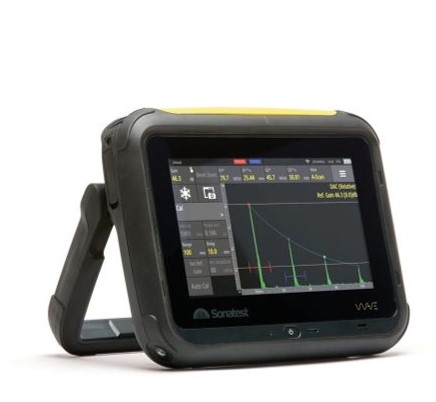

Wave 2.0







The Wave 2.0 update includes many new features & smart improvements including:

  • Enhanced flexibility and richer probe libraries
  • Backwall Echo Attenuation (BEA): opening new doors for the Wave in the forging and casting inspection market
    • Goals:
      • Decrease the overall amplitude of a backwall signal to be used as a defect detection aid via observing amplitude reduction of the back wall
      • Reduce the back wall signal height to improve backwall resolution
    • Compatible with all sizing methods (DAC/TCG/DGS/API/AWS)
  • DAC, TCG, DGS, JIS
  • Custom logo’s for reporting
  • Ukrainian Language
  • Updated Welcome Screen
    • TKY, DGS, T-Log app deleted
    • Demo sales’ apps are still available from the Companion
    • Less confusion, these were made for sales’ purposes
  • Core Ultrasound Features
  • Probe Library Updates
  • Recalling Saved Probes is Easy! Saving them is easy and clear!
  • QCG, PQC, SSG, and PSS probe series are added
    • Note: These series don’t have integrated wedges. It means the user must manually load the refracted angle, z offset and probe zero to match their wedge
  • Customer and field-driven features (DAC, TCG, DGS, JIS)
  • Manual TCG Calibration
    • High traceability requirements Material specific TCG setups
    • Level 3 Calibration settings can be saved and distributed to Waves for site calibration
    • Full control of configurations
    • High level of Repeatability
    • Hint: Use the acquisition cursor tool as a measurement window
  • Manual DGS Curve Calibration
    • Similar calibration and method made in the D-20 and D-70
    • Generic single crystal probes on S or L wave
    • There is no dual crystal generic curve
  • Positive and negative rectifications are compatible with DAC Calibration
  • Logos and probes fully supported in the companion software
  • A-scan Smoothing (with rectification)
