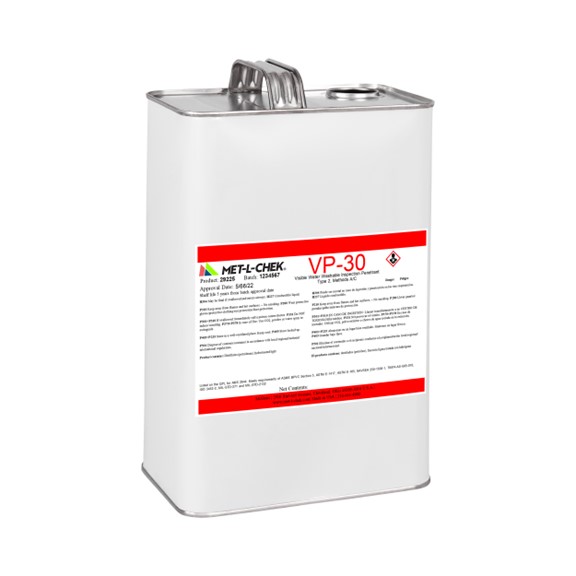

VP-30 is a visible (Type 2), water washable (Method A) and solvent removable (Method C) inspection penetrant. It is designed for use in general metalworking, welding, nuclear and automotive applications for surface flaw and through leak detection. VP-30 has found wide use in the inspection of food and dairy processing equipment such as heat exchanges. Visible penetrants are not rated by sensitivity levels per AMS-2644 but are considered approximate to level 1 fluorescent penetrants. 50ì discontinuities are readily detected and under controlled conditions 30ì size defects may be high lighted by visible penetrants. ISO-3452-2005 does rate visible penetrants by sensitivity level with #2 being the most sensitive. VP-30 is a level 2 per this specifications requirements.
VP-30 is listed on the Qualified Products List for AMS-2644E. It meets the requirements of ASME Boiler and Pressure Vessel Code, ASTM E-165, ASTM E-1417, and ISO- 3452-2005 for penetrant inspection materials. It is low in Sulfur, Chlorine, Fluorine and other Halogens, making it safe for use on Titanium and high Nickel alloys found in aerospace, medical and nuclear components.
Specifications
AMS-2644E ASME B & PV code 07 sec V
ASTM E-165 ASTM E-1417
Dassault IQ-1-0-1-20 ISO-3452-2005
NAVSEA-T9074-AS-GIB-010/271
PMUC RCC-M rev 2000
Typical Physical Properties
Form: red liquid
Density: 801 g/L
Flash Point: >62.2¢ªC (>144¢ªF)
Viscosity: 2.4 mm2/s
Water Tolerance: > 5%
Corrosion of aluminum: none
Corrosion of carbon steel: none
Corrosion of magnesium: none
Corrosion of stainless steel: none
Corrosion of titanium: none
Chloride content: < 50 ppm (< 0.005%)
Fluoride content: < 50 ppm (< 0.005%)
Sulfur content: < 150 ppm (< 0.015%)
Mercury: none
VOC¡¯s: 533 g/L
Ozone layer depleting substances: none
PCB¡¯s: none
