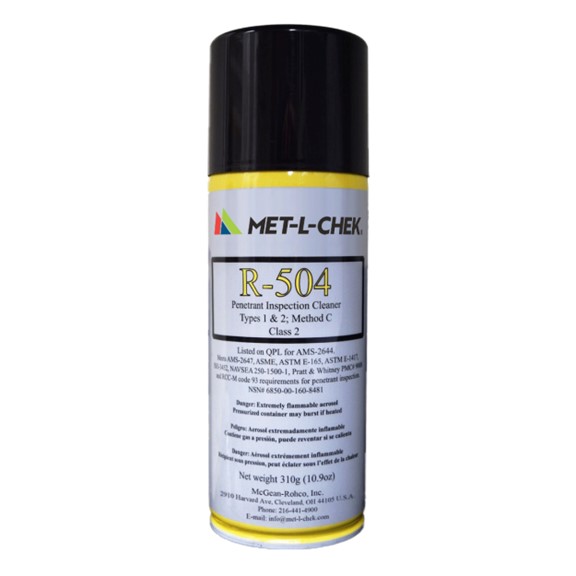

R-504 is a class 2 (non-halogenated), Method C inspection penetrant remover. It is designed for use in the solvent wipe technique for penetrant inspection in general metalworking, welding, nuclear and aerospace applications. It is a flash dry rate material and as such is ideal for penetrant wipe removal, especially for the verification of indications. A cotton swab is moistened with R-504 and suspected indications are lightly wiped from the surface. The inspector can evaluate the indication by the rate of penetrant bleed back. The rapid drying of R-504 is ideal for this application as it does not blur the indication. The aerosol comes with a spray tube that facilitates pin point application which is ideal for cleaning the star indications on TAM panels. As a pre-cleaner it is sprayed directly on the test surface. As a penetrant remover it is sprayed onto wiping media and then the penetrant wiped from the surface. The remover should not be sprayed directly on to the test surface to remove the excess penetrant as the sensitivity will be impaired.
R-504 is a phenol free solvent. R-504 is flammable and should not be used in confined spaces or near open flames or sparks.
Specifications
AMS-2644E AMS-2647C
ASME B & PV code 07 sec V
ASTM E-165 ASTM E-1417
ISO-3452-2005
NAVSEA-T9074-AS-GIB-010/271
P & W PMC #9008 RCC-M rev 2000
Typical Physical Properties
Form: clear liquid
Density: 791 g/L
Flash Point: >-20¢ªC (>-4¢ªF)
Fluorescence: none
Corrosion of aluminum: none
Corrosion of carbon steel: none
Corrosion of magnesium: none
Corrosion of stainless steel: none
Corrosion of titanium: none
Residue: < 0.005 g/100 ml
Chloride content: < 50 ppm (< 0.005%)
Fluoride content: < 50 ppm (< 0.005%)
Sulfur content: < 100 ppm (< 0.01%)
Mercury: none
Phenol: < 1 ppm (<0.0001%)
VOC¡¯s: 791 g/L Exempt from EPA limits
Ozone layer depleting substances: none
PCB¡¯s: none
