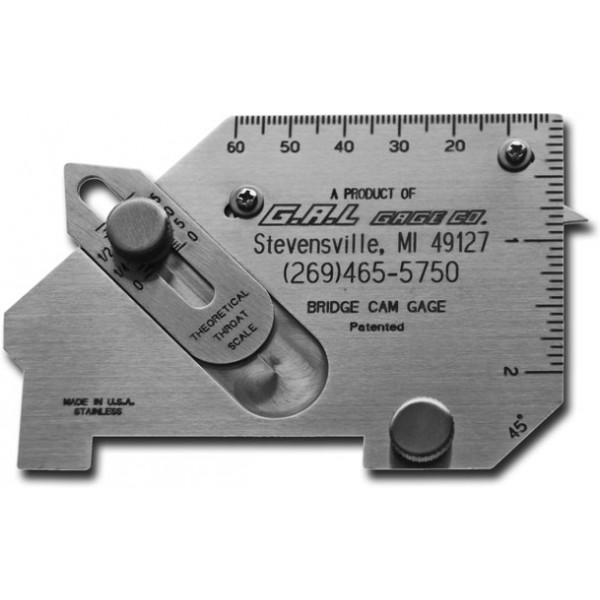

G.A.L. Gage Co. Pocket Bridgecam Gauge

– Angle of preparation, 0 to 60 degrees
– Excess Weld Metal (capping size)
– Depth of Undercut By 1/32″
– Depth of Pitting by 1/32″
– Fillet Weld Throat Size (1/64″ or .5mm, Theoretical and Actual)
– Fillet Weld Leg Length
– Misalignment (High-Low)
