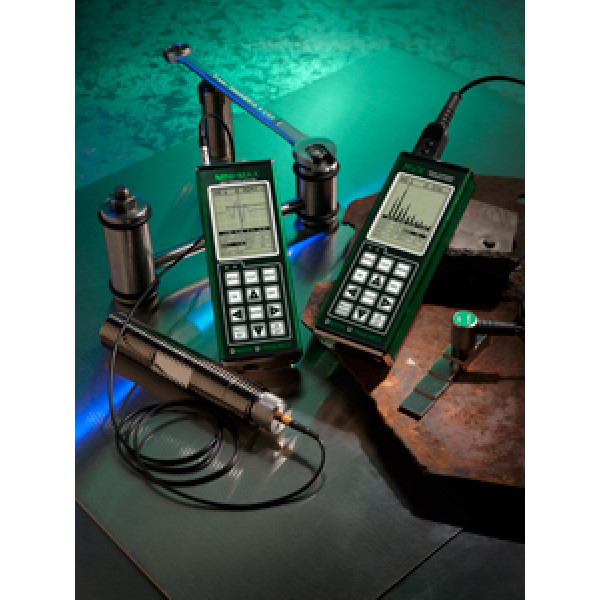

The MVX finishes the line of MX gauges with class. This thing is loaded with all of the features of the MX gauges and a lot more. Four selectable display options: RF, Rectified, B-Scan, and Large Digits. An internal data logger that stores a total of 12,000 readings and waveforms, 64 user custom definable setups, selectable transducer table for improved linearity, thru paint mode with the single press of a button, multiple calibration and material selection options, and auto waveform find – just to mention a few! Equipped with a single element flaw prove-up mode for basic angle beam inspections. This is all nicely packaged in a very mini portable aluminum extrusion for extra durability and portability! Our DakView java-based PC or MAC OSX software makes this thing a complete kit, and then some!
Physical
Weight: 13.5 ounces (with batteries).
Size: 2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm).
Operating Temperature: -14° to 140°F (-10° to 60°C).
Keyboard: Membrane switch with twelve tactile keys.
Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Data Output: Bi-directional RS232 serial port. Windows® PC interface software.
Display: 1/8 in. VGA grayscale display (240 x 160 pixels). Viewable area 2.4 x 1.8 in. (62 x 45.7mm).
EL backlit (on/off/auto).
Measuring
Range: Pulse-Echo Mode: (Pit&Flaw Detection) measures from 0.025 9.999 inches (0.63 to 254 millimeters).
Echo-Echo Mode: Thru Paint & Coatings) measures from 0.1 to 4.0 inches (2.54 to 102 millimeters).
Range will vary +/- depending on the thickness of coating.
Resolution: +/- .001 inches (0.01 mm)
Velocity Range: .0492 to .3936 in./ms 1250 to 9999 meters/sec
Single and Two point calibration option, or selection of basic material types.
Units: English & Metric
Certification
Factory calibration: traceable to national standards
